New Glass Grippers [HS132]

HS132 - New Glass Grippers PDF (0.23 MB)

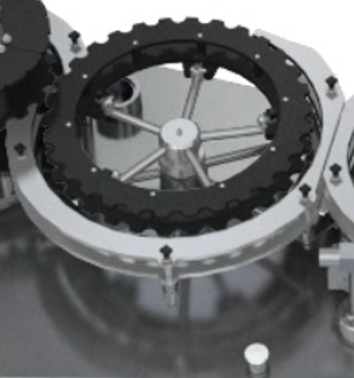

Before
After
  • Machine type Filler
  • O&U Themes Flexibility
  • Complexity3/3
  • Machine Sub-assemblyTransfer starwheels
Description

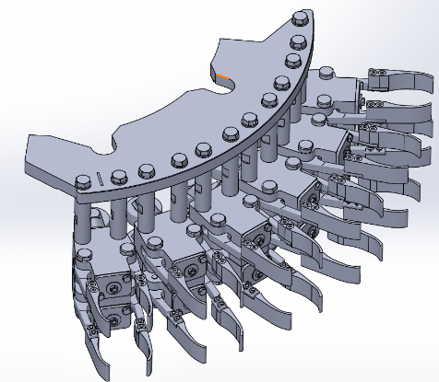

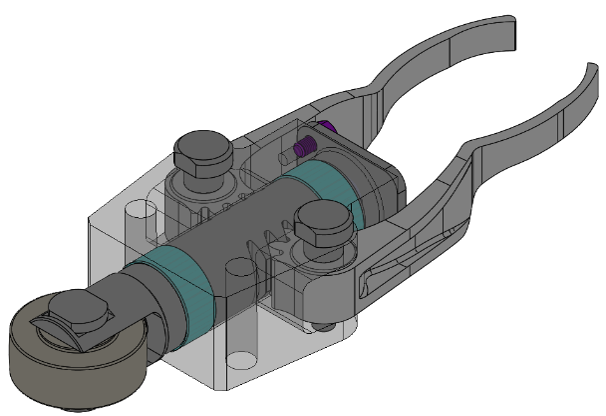

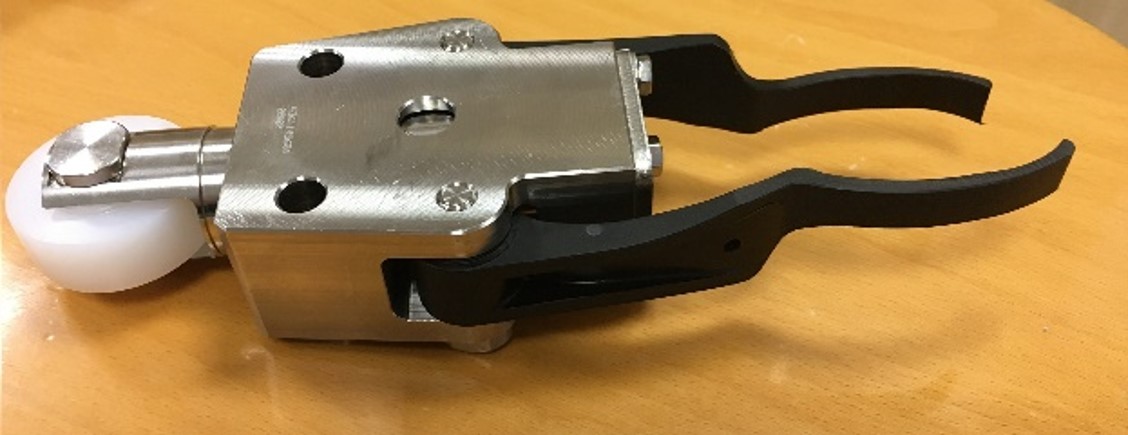

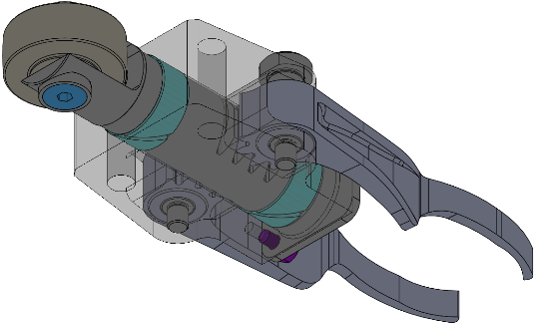

  • Traditional starwheels replaced by sectors fitted with grippers
  • Designed for fragmented maintenance
  • Scheduled 6000-hour maintenance for the following components
    • slide rings,
    • rollers,
    • springs
Key message

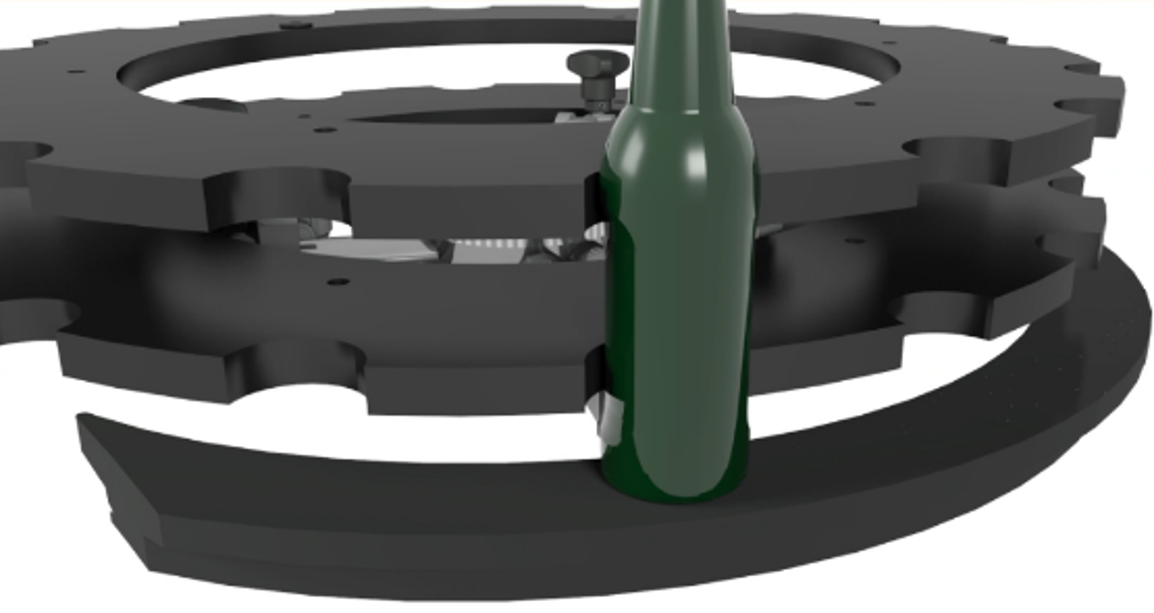

Improve your glass bottle handling and gain in flexibility
Machine application

Eurostar RAA/REV; Eurostar EV REG; Eurotronica LP REE; Matrix SF320 RMA

Benefits
  • Flexibility

         No need to replace starwheels to handle multiple cylindrical bottles shapes

  • Fragmented maintenance

          maintenance activities can be performed in masked time

  • Quick restart in case of grippers damage

           Affected sector can be easily and quickly replaced by a spare one

  • Reduced footprint

           Minimum space required to store format dependent parts
