Sidel IntelliADJUST™ for Matrix [2081]

2081 - Sidel IntelliADJUST™ for Matrix
在...之后
  • 机器类型 吹瓶机 MATRIX
  • 选项与升级主题 成本优化
    可持续发展
    产品品质
  • 复杂性3/3
  • Machine Sub-assemblyTransfer table
描述

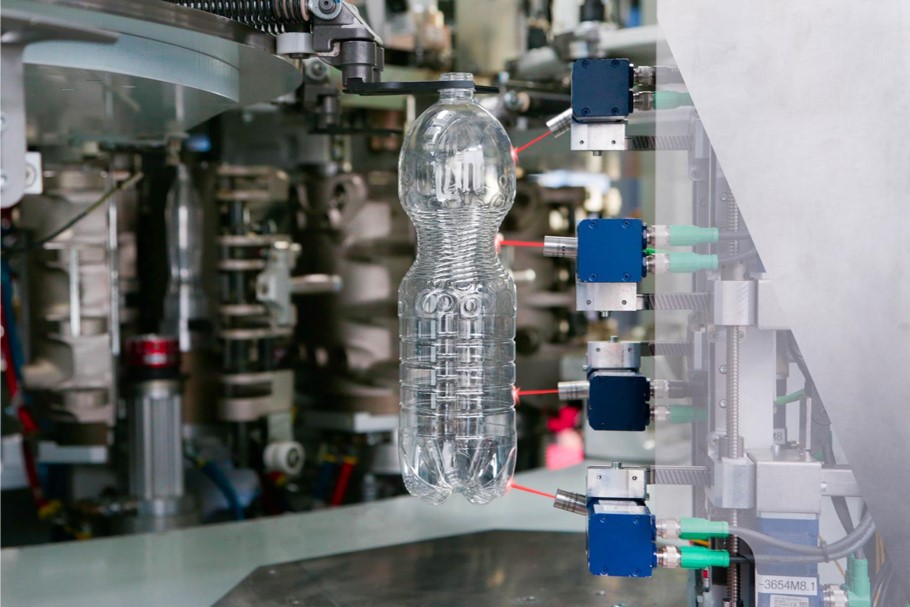

Precise and efficient one-sided measurements using interferometric sensor technology, based on reflected infrared light

  • Four measuring points to secure consistent bottle quality
  • High-precision measurements +/- 2 µm
  • Adjustable positions for measuring critical bottle points
  • Combined with vision system to check the bottle base injection point

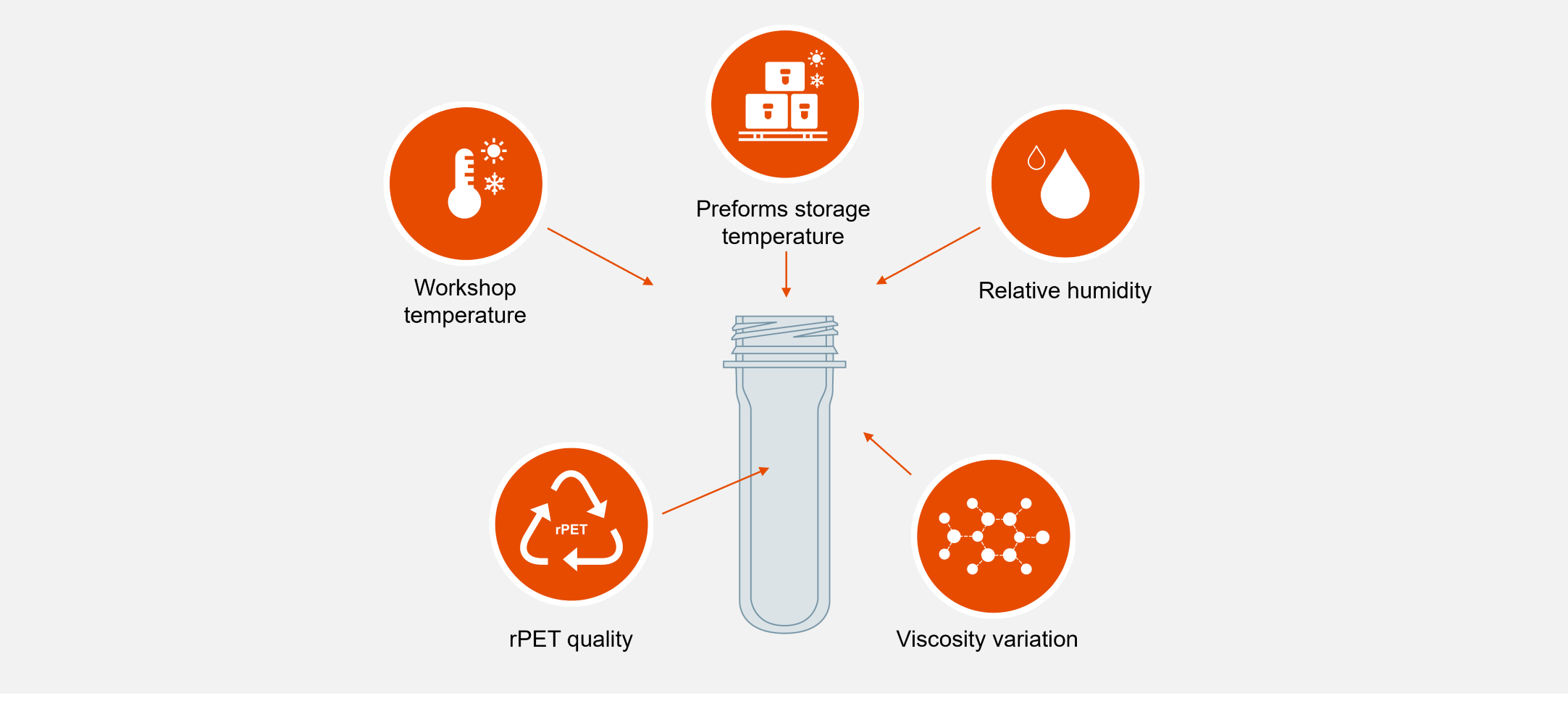

100% reliable and calibration-free, across a wide range of preforms - translucent, colored, rPET or virgin

  • Available for cylindrical, translucent and opaque bottles without TiO2
关键信息

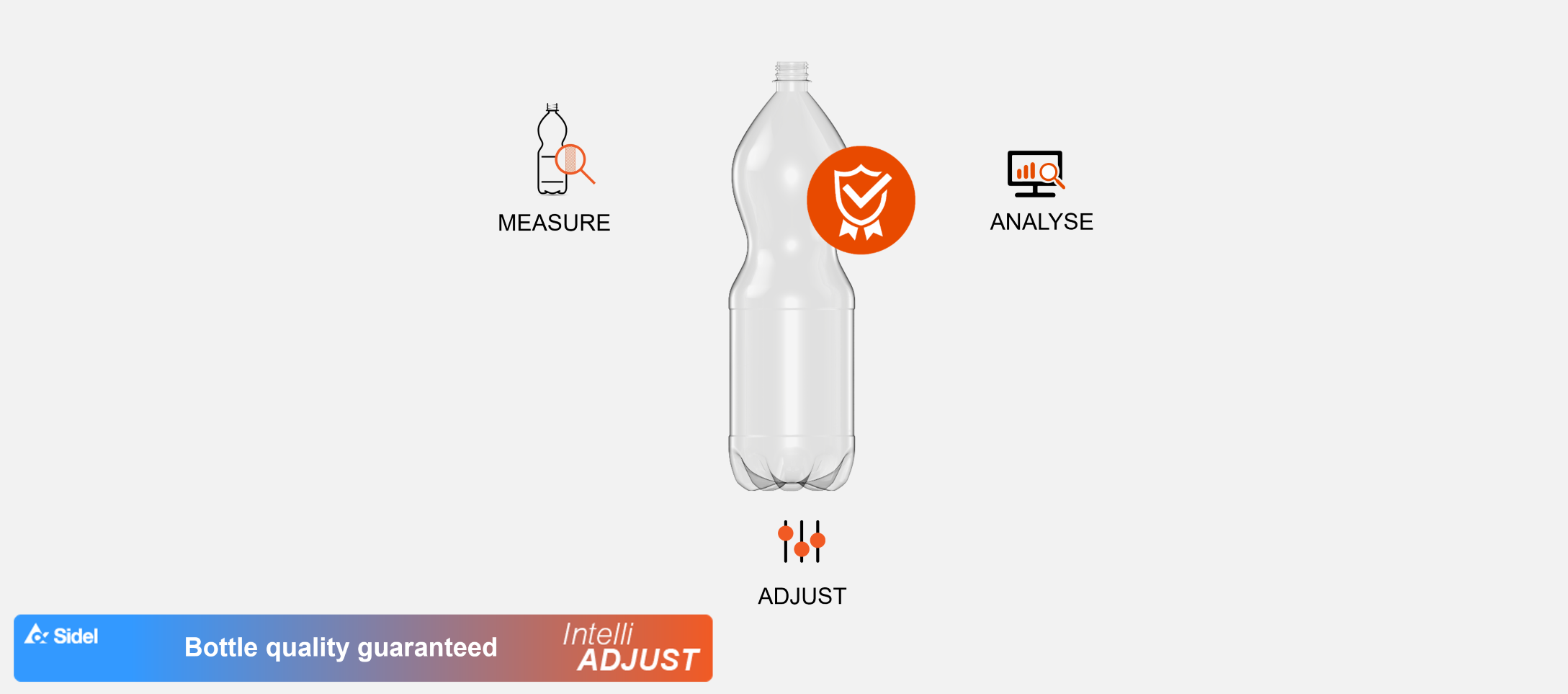

Smart and dynamic bottle blowing control system
适用机型范围

Matrix range

好处

GREATER BOTTLE QUALITY CONSISTENCY

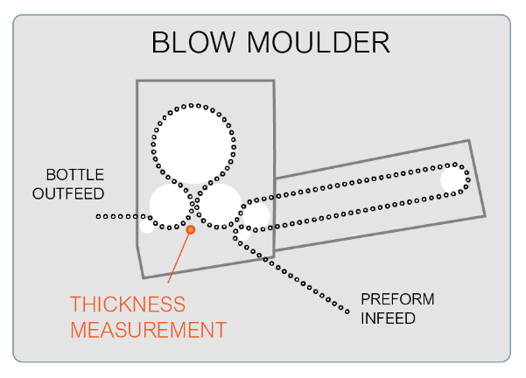

  • Precise and efficient inline thickness measurement
  • Continuous closed loop process control
  • Guaranteed quality whatever the production conditions

EASY TO USE

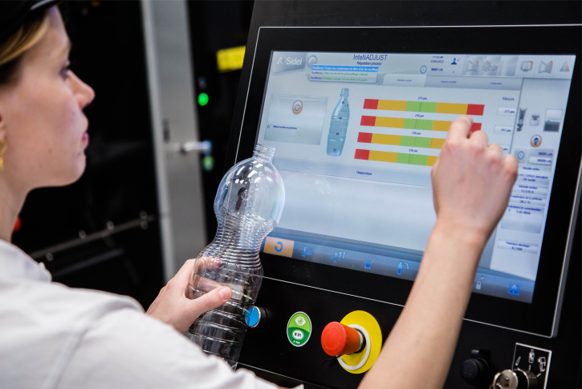

  • Expert-free system
  • Automatic process adjustment
  • Calibration-free system for production and format changeovers

MORE SUSTAINABLE

  • 100% reliable across a wide range of preforms including rPET
  • Less destructive lab controls
  • Eliminates scrap produced by inconsistent material distribution

COST EFFECTIVE

  • Maximised marketable production
  • Reduced lab control operations and equipment
  • Immediate start up after changeovers

DIGITAL AND CONNECTED

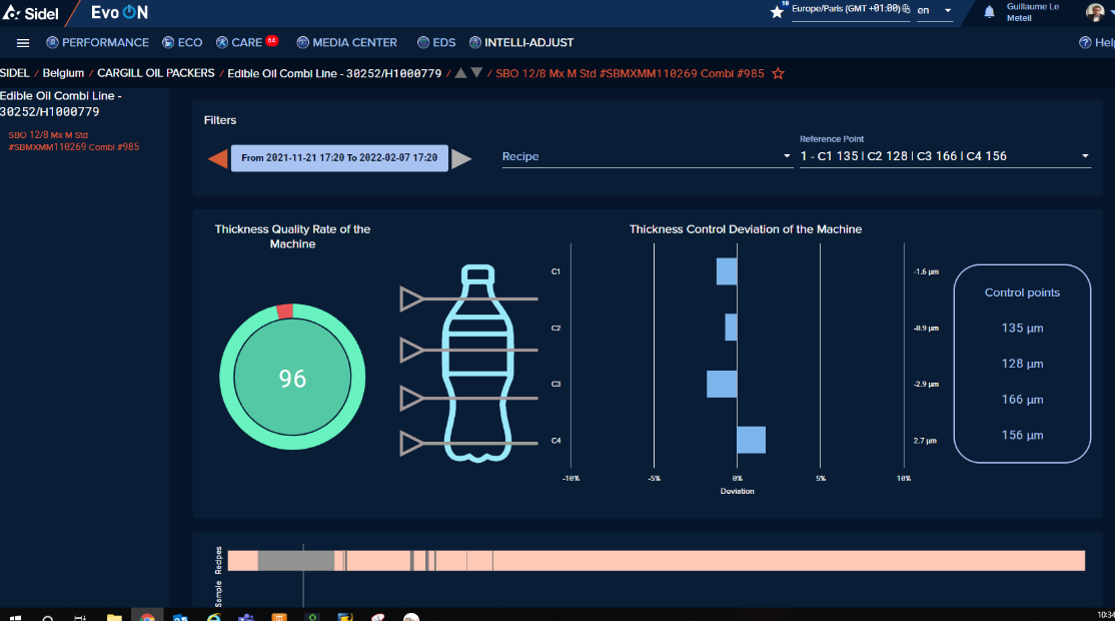

  • Powered with a special App from the EvoON suite

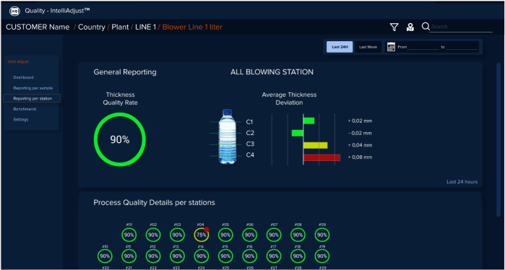

  • Advanced data analysis and statistics
  • Benchmark performance and parameter monitoring
