Air Recovery Kit for STD. and H.R. process [1005]

1005 - Air Recovery Kit for STD. and H.R. process

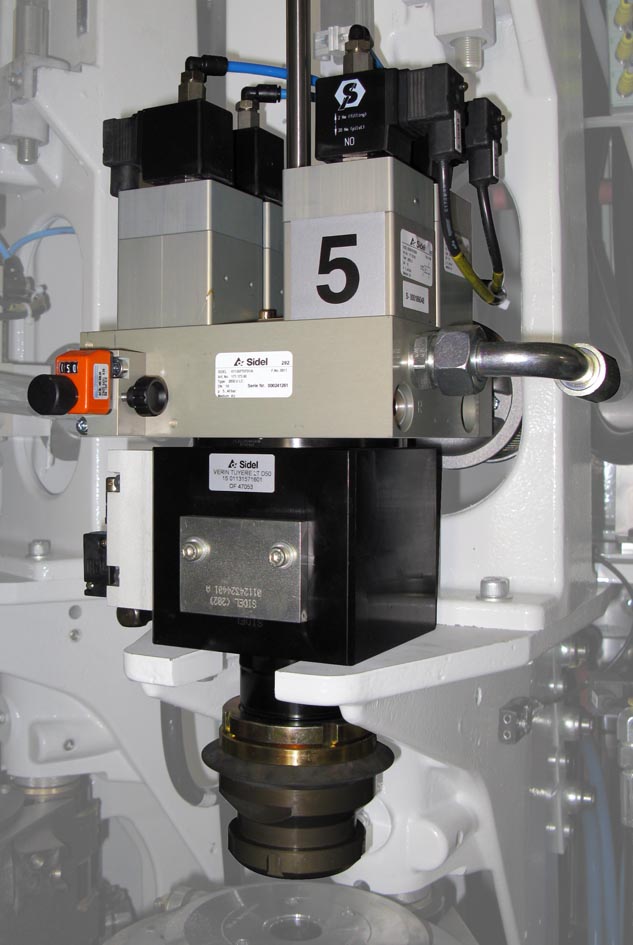

Before

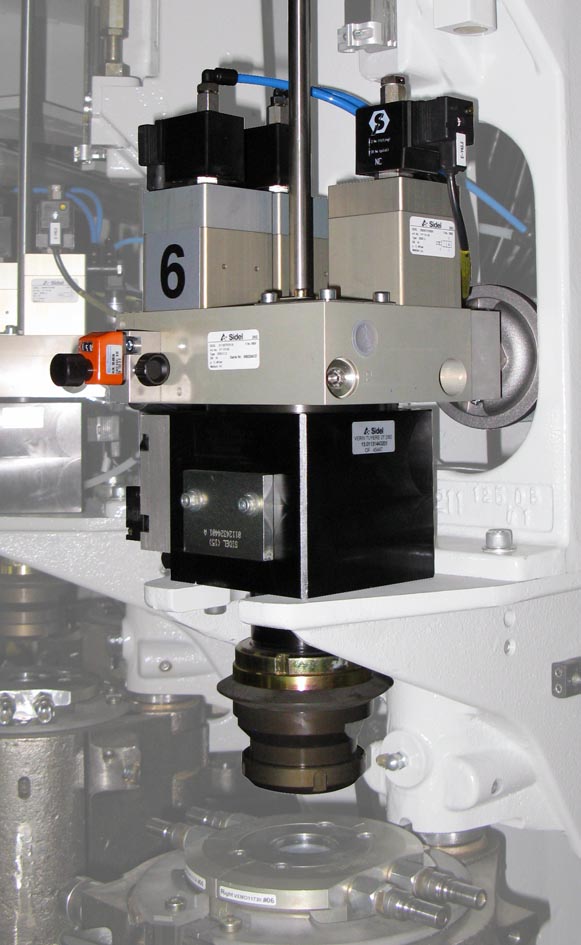

After
  • Machine type Blowers Universal
  • O&U Themes Cost optimisation
    Sustainability
  • Complexity3/3
  • Machine Sub-assemblyBlowing wheel
Description

-The air recovery kit enables a significant amount of the air otherwise lost to be recycled for use in production and thus reduce energy consumption considerably

-This recovered air is then used for the production of air as follows

     -Preblow airService air for the blow wheel (stretching and nozzle cylinders)

     -Excess air can also feed the factory's air network for other applications

-For hygiene reasons, the air recovery option is not compatible with Predis equipment.

Key message
Recover up to 40% of blowing air (Yearly avoided Green House Gas emissions - Up to 268t CO2 (*))
Machine application

Universal PM MM GM TM HR

Benefits

-Up to 40% of blowing air is recovered and reused

-Return on investment in just 12-24 months

-Demand on compressors is also reduced resulting in significant electricity savings



Yearly avoided Green House Gas emissions - Up to 268t CO2 (*)



(*) Result for an SBO20 producing 1l bottle

     a. 35 bar blowing pressure

     b. 30000 bottle/h speed rate

     c. 6000h production time / year
