AA31 - Cutting Unit 2.0

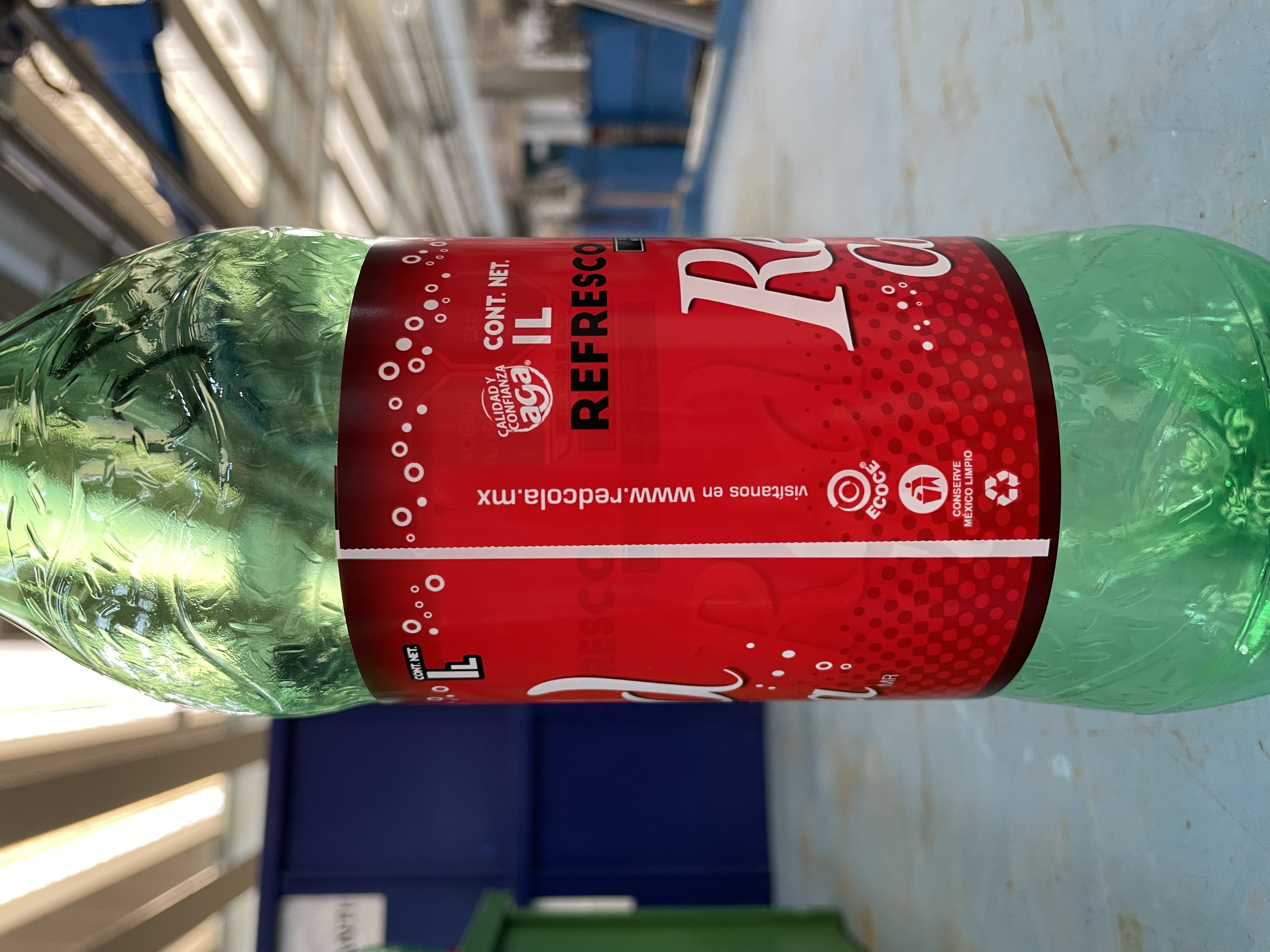

Before

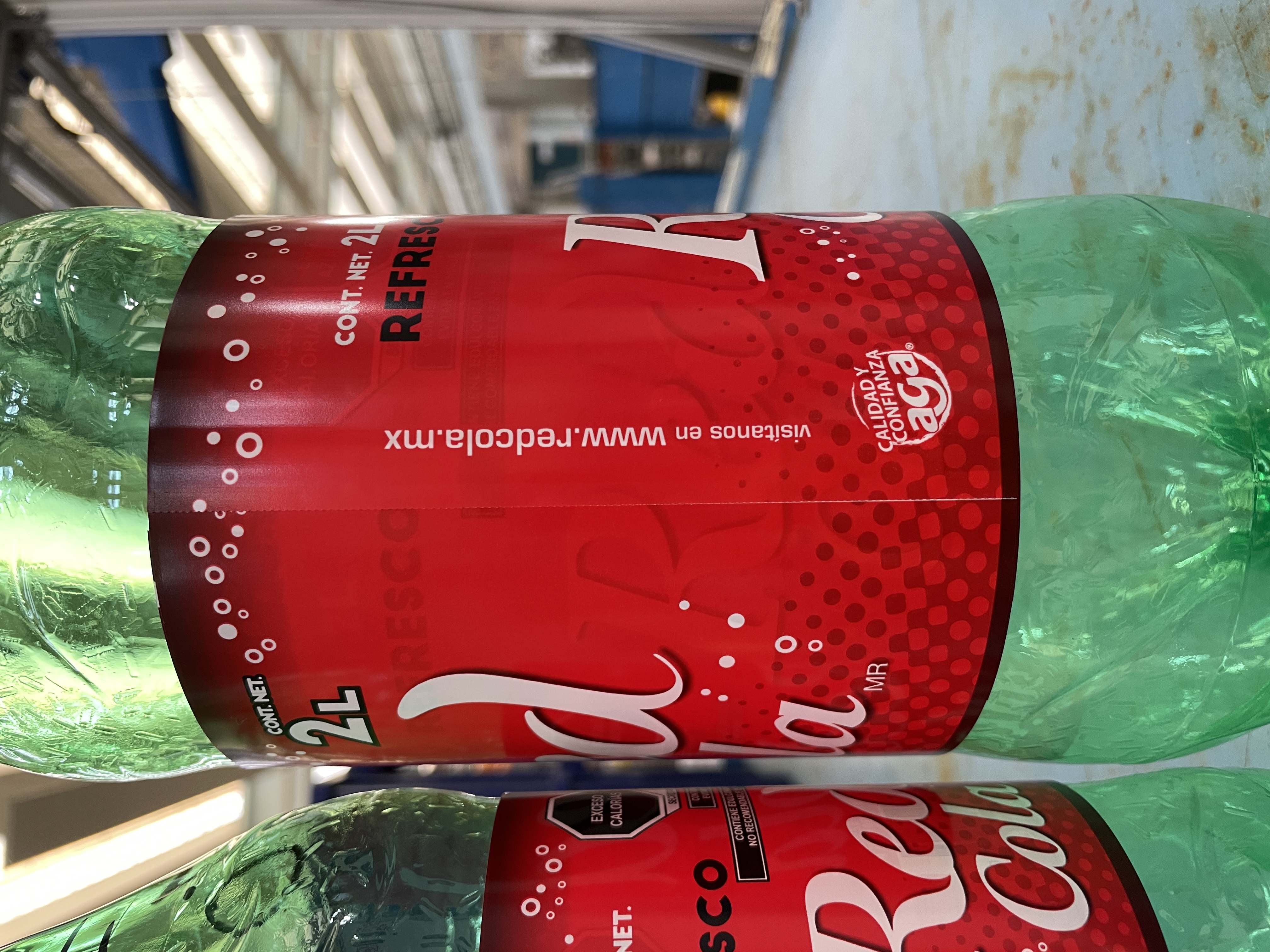

After
- Machine type
Labeler
- O&U Themes
Efficiency
Maintenance
- Complexity2/3

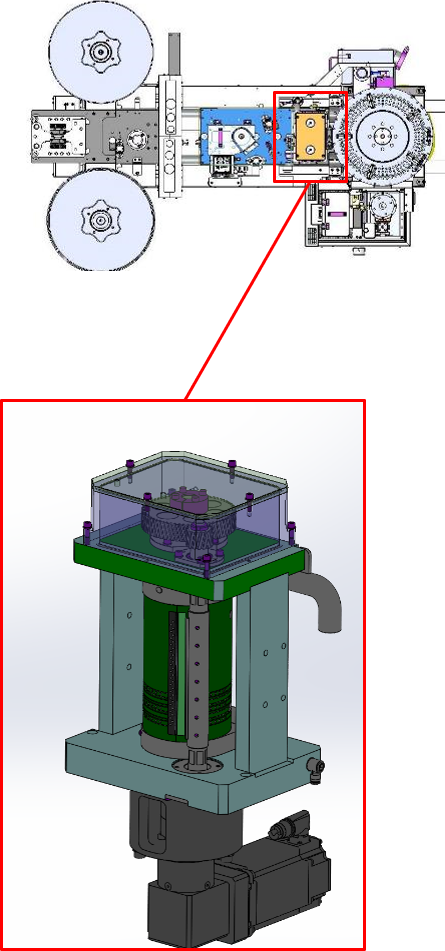

- Machine Sub-assemblyCutting module (labelling station)
Description

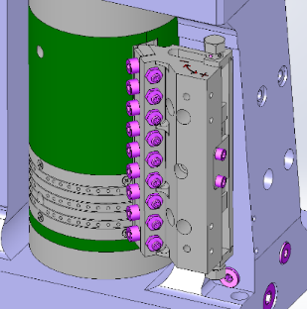

Rotary blade without settings.
Twin roller system, driven by gears motion (ratio of 1:4)

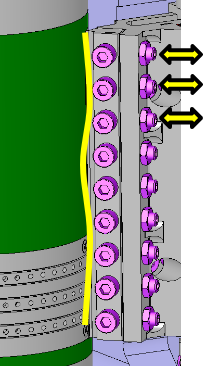

Cutting performed by high velocity blade on tensioned label.

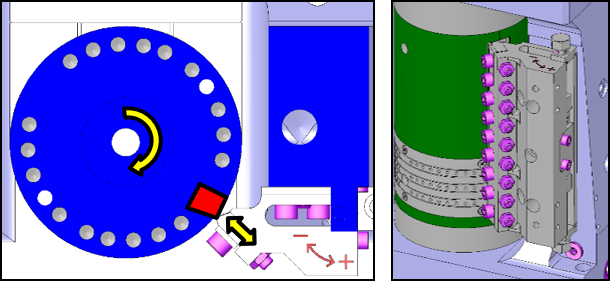

Cam-shaped profile allows to cut the label every 4 revolutions

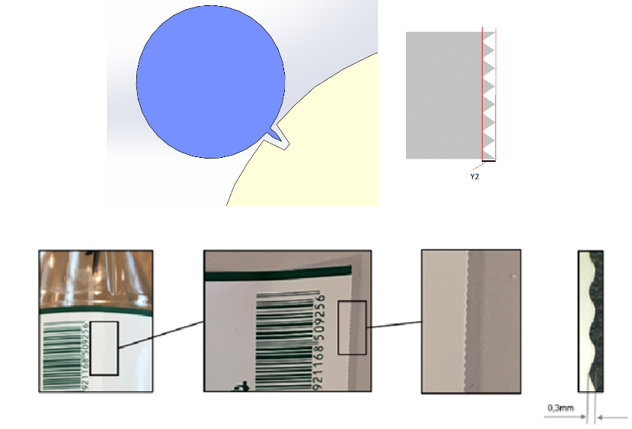

Cutting line shaped
Current cutter unit can be retrofitted with the new one in 1 day by two technicians.
Key message
No more blade painful settings. Highest reliability cutting module. Easy maintenance.
Machine application
SSC labellers (rollfed module)
Evodeco
Benefits
RELIABILITY
Cutting system without contact, very low components wearing
PERFORMANCE
Very high working tolerance range, maintenance not needed
TROUBLE SHOOTING
Cutting issue only related to the blade wearing, that can be replaced in only 10 min.
MAINTENANCE
Components replacement: rotary blade (10 min for adjustment) not special skill requested, standard bearing + seal.
QUALITY
