Eco lamps for Series2, Eco solutions for oven [962]

962 - Eco lamps for Series2, Eco solutions for oven

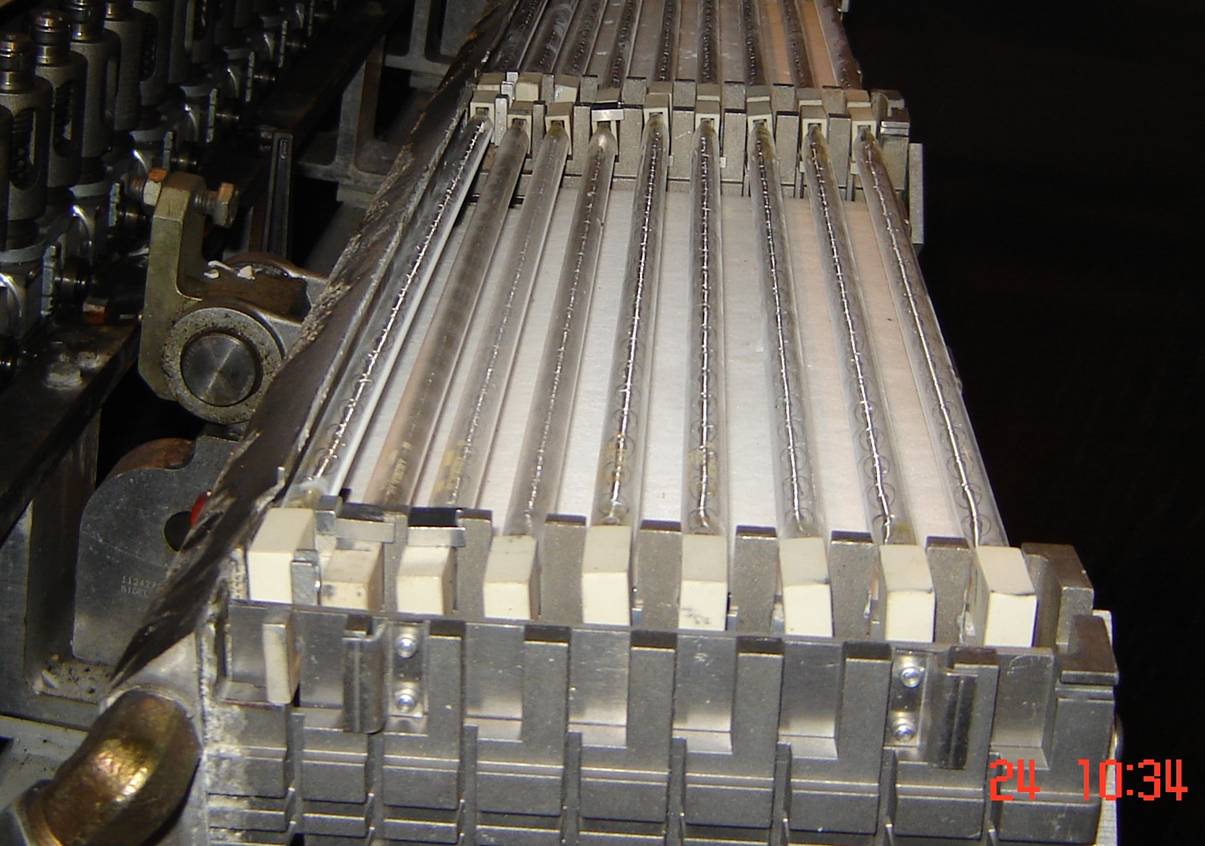

Before

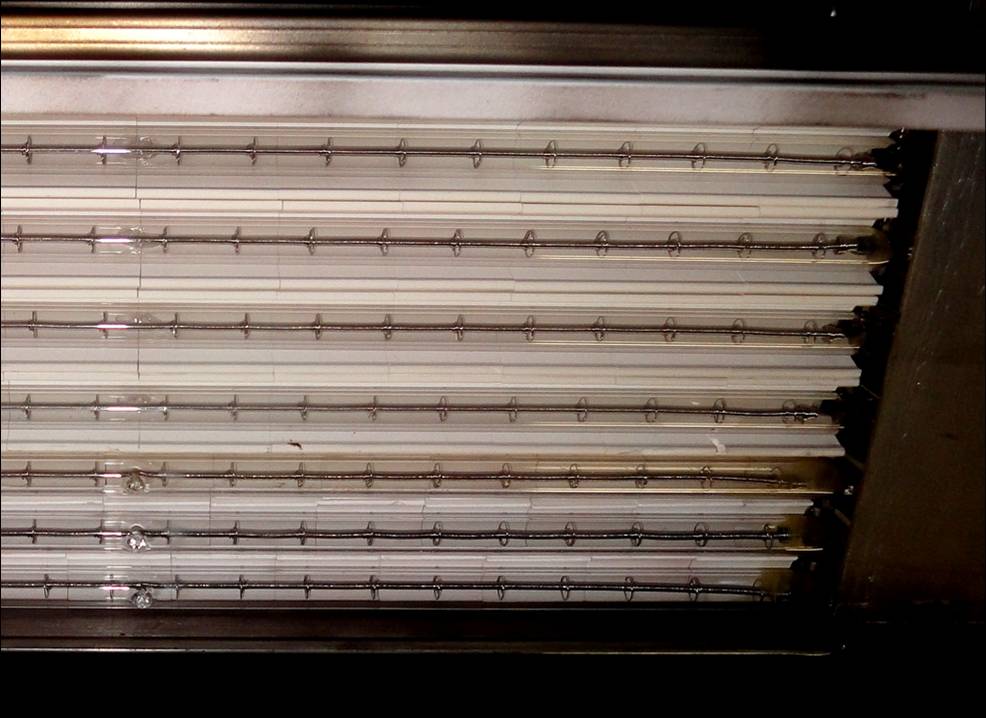

After
  • Machine type Blowers Series2
  • O&U Themes Cost optimisation
    Sustainability
  • Complexity1/3
  • Machine Sub-assemblyBlower Oven
Description

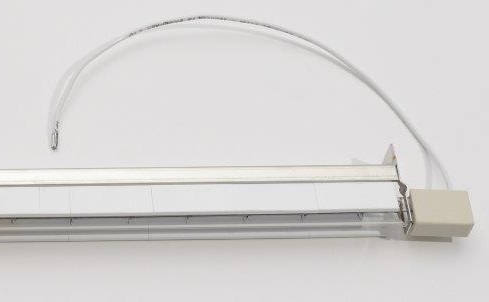

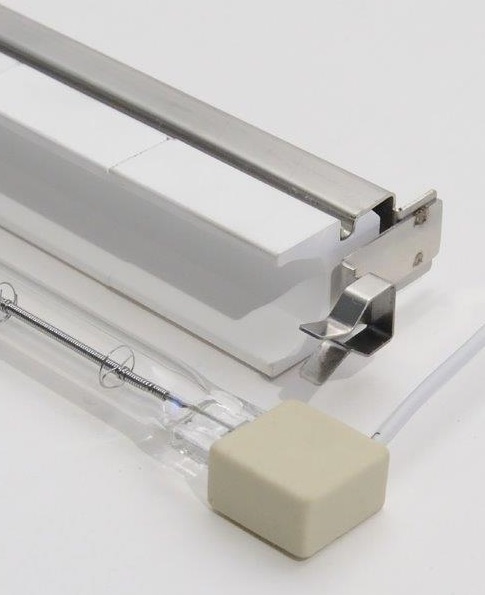

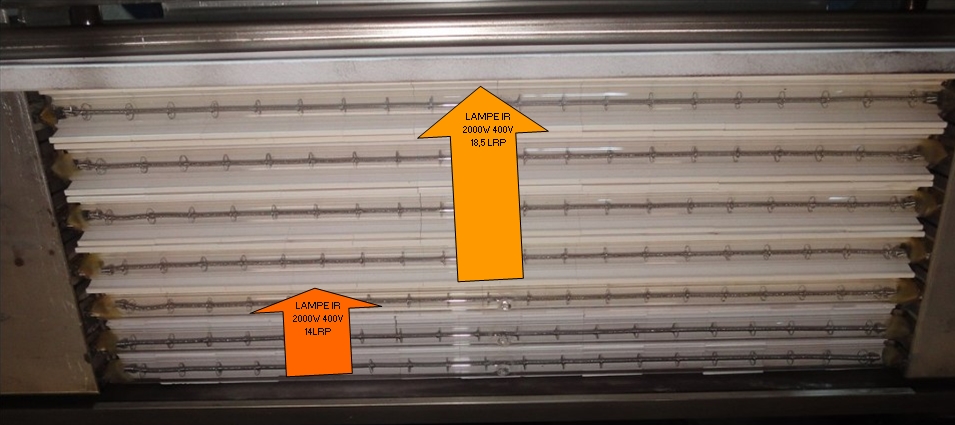

-A very simple replacement of the 2kW infra red lamps by the new 1,700W proximity reflector lamps

-On SBO Series 2  the ECO lamps can be installed without oven modifications whatever the oven pitch (15 mm, 19 mm, progressive)

-1,700W ECO lamps last at least 5,000 hours

Key message
Reduce electricity consumption up to 15% (Yearly avoided Green House Gas emissions - Up to 74t CO2 (*))
Machine application

Series 2 blowers except heat-set version

Benefits

-Up to 15% energy consumption saved with the new eco-lamps on Series 2

-Better zoning and improved neck protection

-Improved process stability

-Quartz tube is mechanically protected

-Processing capabilities remain universal

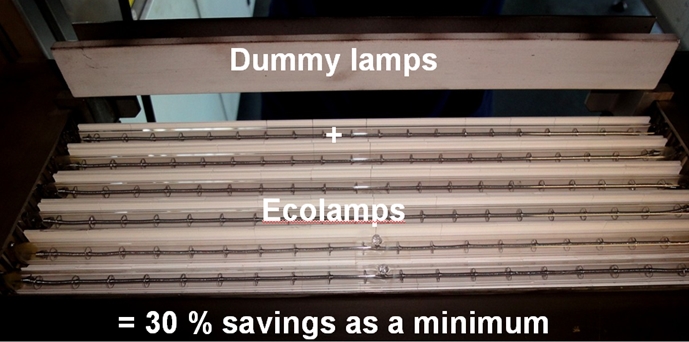

Combine the ECO lamps with the oven top reflector on Series 1 or Series 2 blowers and get up to 30% power savings





Yearly avoided Green House Gas emissions - Up to 74t CO2 (*)

(*) Result for an SBO 10 producing 1l bottle

     a. 15000 bottle/h speed rate

     b. 6000h production time / year
