Before
After
- Machine type
Blowers Universal
- O&U Themes
Cost optimisation
Sustainability
- Complexity3/3
- Machine Sub-assemblyBlower Oven
Description
-New adjustment block/oven support: Independent setting of neck cooling shield for more stability

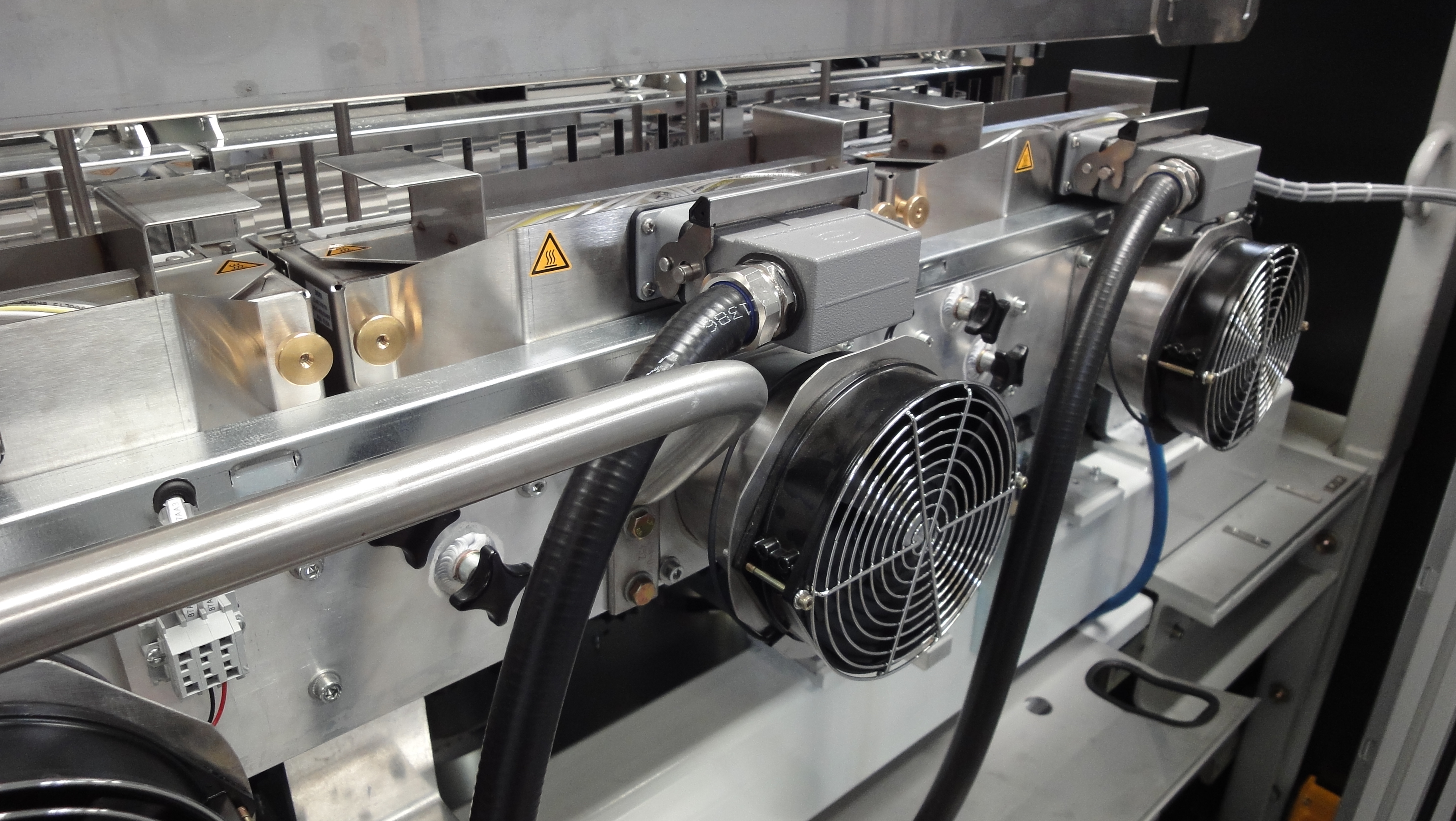

-Ecoven module for lamps cooling: The Super Cobra is replaced by a fan dedicated to each module

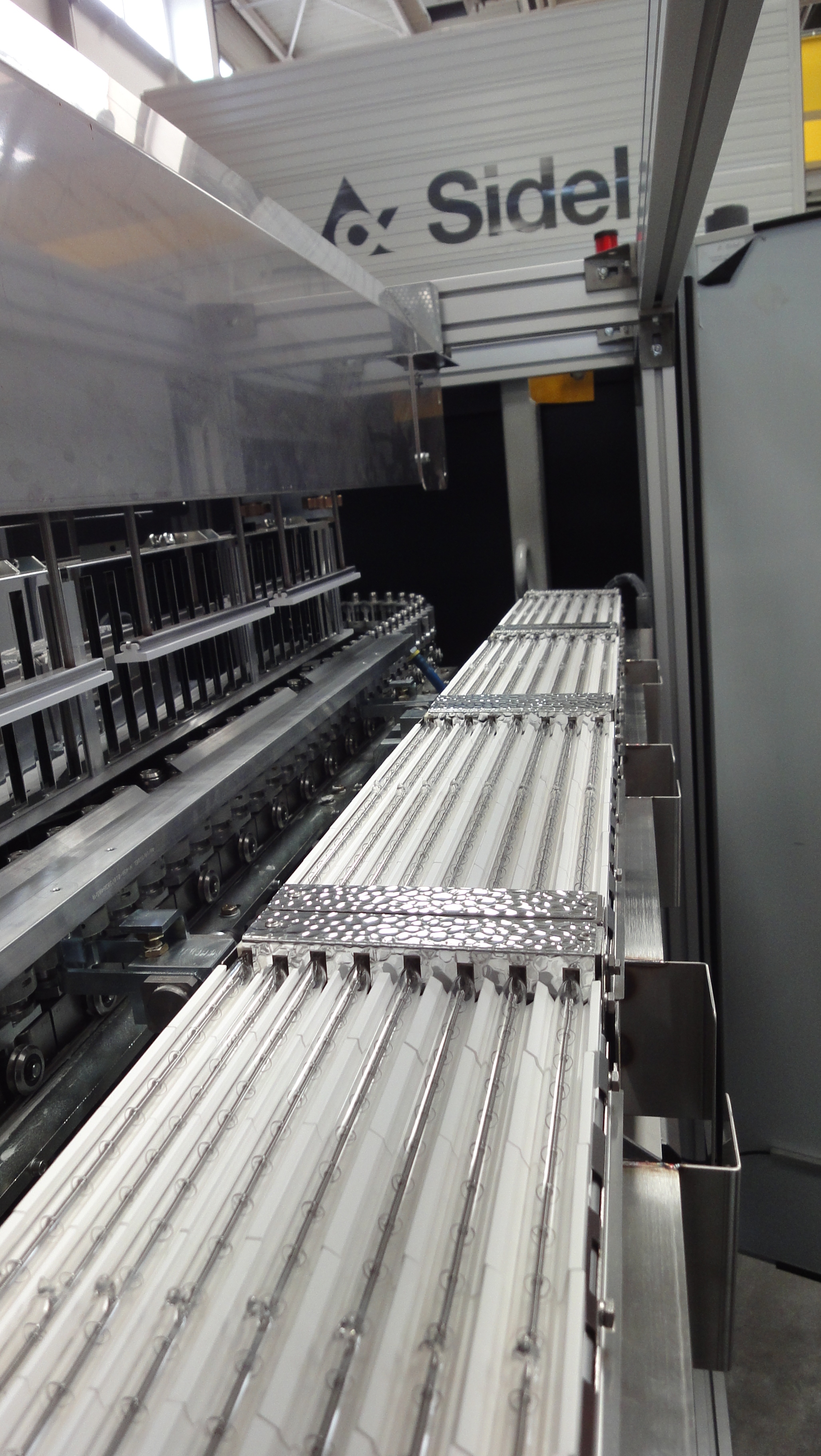

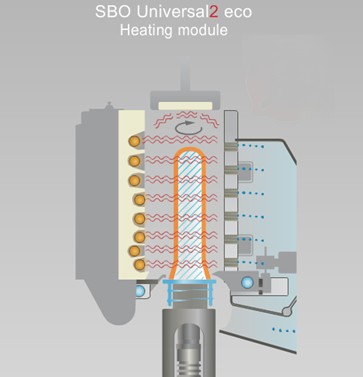

-Heating modules: Only 8 IR lamps, more efficient lamps, ceramic wall and top reflector
-Ceramic oven top reflector, adjustable in height to fit all preform lengths

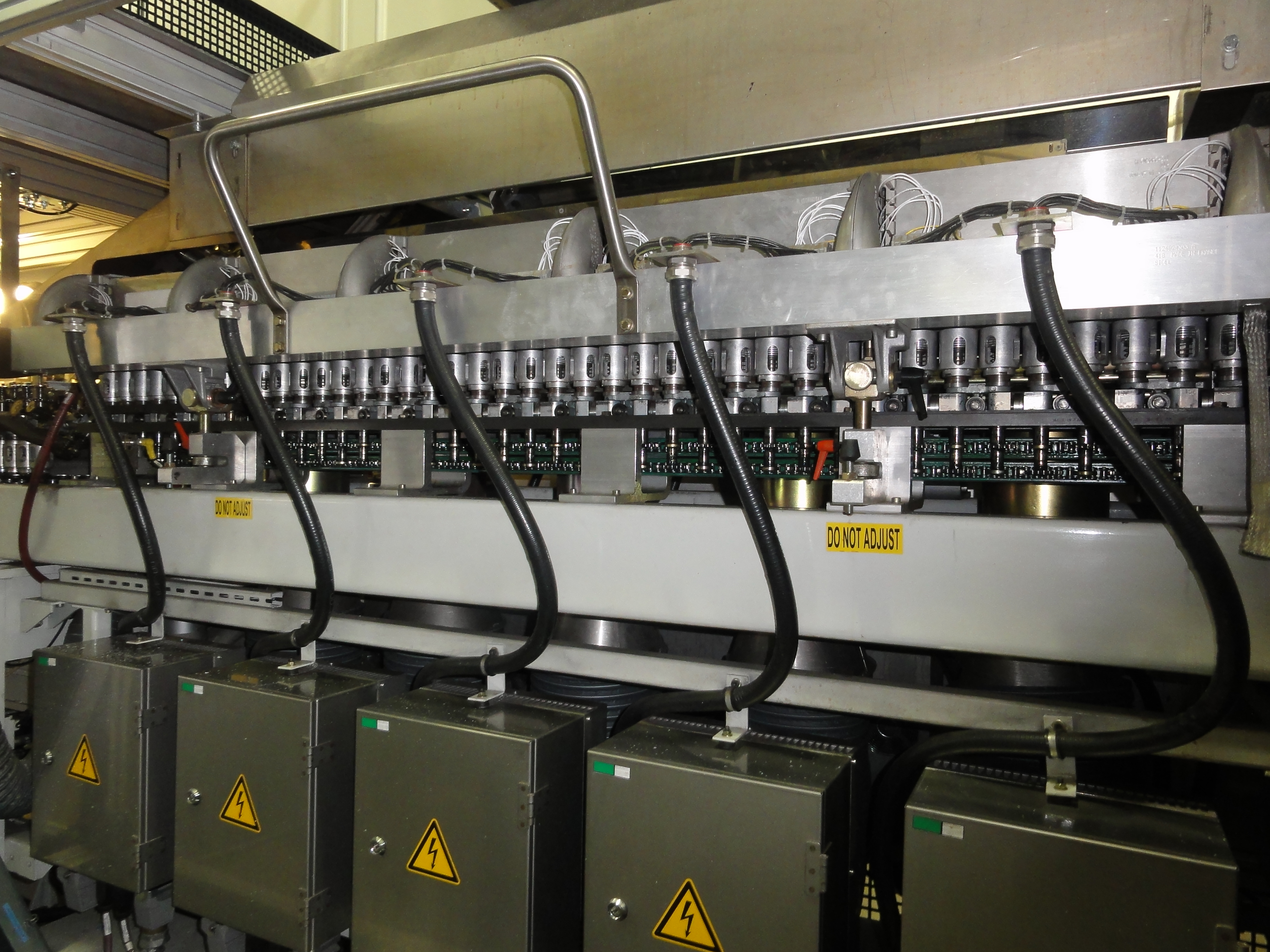

-Wiring: Pre-wired cabinet added to supply power to the fans
-New automation and process: Updated main electrical cabinet (power supply, new functionalities and readjustment of all process sheets)
Key message
Machine application
All Universal except heat-set version
Benefits
-20% to 45% less electrical consumption
-Fewer lamps for 11% less installed power
-Sharper heating: Sharp zoning on preform surface and optimized under-neck stretching
-Easier to maintain: Heating module can be serviced on the bench while the machine runs with a spare module
-Ceramics are self-cleaning via pyrolysis effect
Yearly avoided Green House Gas emissions - Up to 333t CO2 (*)
(*) Result for an SBO 20 producing 1l bottle
a. 30000 bottle/h speed rate
b. 6000h production time / year
